Germanjet 19 Series

The 19 series non-contact absolute position transducer is specially designed for use in many harsh process applications such as refining, petrochemicals, power generation, and even pharmaceuticals. Beside available for basic analog output, it coexists alongside with other communication interface such as CANBus, Profibus, SSI, and Start / Stop.

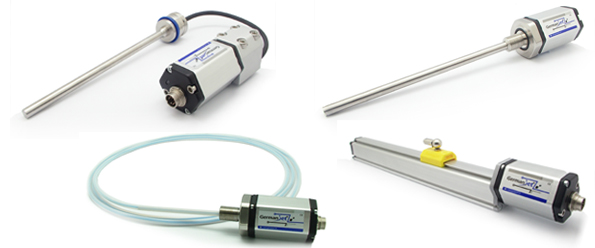

The transducer is available in hydraulic rod style, aluminium profile, and detachable model. All models rated for IP67 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector is common for field connection.

Model Number
Output
PDF
190
Voltage
191
Current
192
SSI
193
Start / Stop
194
CANBus
195
Profibus
196
DeviceNet
197
EtherCAT



Success Stories

Magnetostrictive Technology

The fundamental principle of the Germanjet position transducer is by analyzing the feedback sonic wave induced by an interaction of two magnetic fields. The first magnetic field is produced by the moveable magnetic cursor which attached at the moving component of a machine. The second field is generated by the pulse initiator. Learn more...

Electromagnetic Compatibility

is the branch of electrical engineering concerned with the unintentional generation, propagation and reception of electromagnetic energy which may cause unwanted effects such as electromagnetic interference EMI) or even physical damage in operational equipment. Learn more...
