Germanjet 17 Series

position_sensor

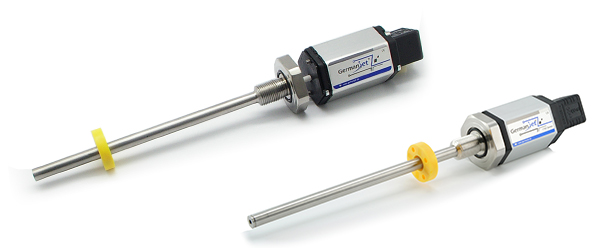

The 17 series non-contact absolute position transducer is specially designed for hydraulic cylinder to provide precise, direct and absolute position feedback. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily. In some instance, if the transducer needs to be re-calibrated, the hydraulic body no need to be detached from the hydraulic cylinder. This modular design can greatly reduce the cylinder reset time and improve efficiency.

The transducer is rated for IP65 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector (DIN 43650) is common for use in hydraulic device and easy for field connection. Besides for hydraulic system, it is also suitable for machine installation. The absence of electrical contact eliminates all wear and guarantees almost unlimited mechanical life expectancy.

Model Number
Output
PDF
170
0-10V and 10-0V Dual Output
171
0-20mA
172
20-0mA
173
Start / Stop
174
4-20mA
175
20-4mA
176
CANBus
177
SSI



position_sensor

Success Stories

position_sensor position_sensor position_sensor position_sensor position_sensor position_sensor

Magnetostrictive Technology

The fundamental principle of the Germanjet position transducer is by analyzing the feedback sonic wave induced by an interaction of two magnetic fields. The first magnetic field is produced by the moveable magnetic cursor which attached at the moving component of a machine. The second field is generated by the pulse initiator. Learn more...

Electromagnetic Compatibility

is the branch of electrical engineering concerned with the unintentional generation, propagation and reception of electromagnetic energy which may cause unwanted effects such as electromagnetic interference EMI) or even physical damage in operational equipment. Learn more...
