Germanjet 18 Series

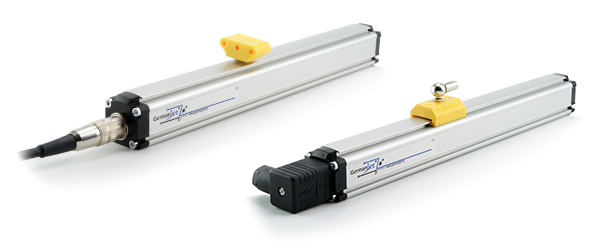

The 18 series non-contact absolute position transducer adopts the non-contact magnetostricitve measuring technology for precise, direct and absolute measurement. The absence of electrical contact on the cursor eliminates all wear and guarantees almost unlimited mechanical life expectancy. The non-contact (Floating) cursor provides exceptional ease of installation with a variety of available cursor position target.

The high versatile profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. Mounting is accomplished using clamps that allow precise mechanical adjustment.

Model Number
Output
PDF
180
0-10V and 10-0V Dual Output
181
0-20mA
182
20-0mA
183
Start / Stop
184
4-20mA
185
20-4mA



Success Stories

Magnetostrictive Technology

The fundamental principle of the Germanjet position transducer is by analyzing the feedback sonic wave induced by an interaction of two magnetic fields. The first magnetic field is produced by the moveable magnetic cursor which attached at the moving component of a machine. The second field is generated by the pulse initiator. Learn more...

Electromagnetic Compatibility

is the branch of electrical engineering concerned with the unintentional generation, propagation and reception of electromagnetic energy which may cause unwanted effects such as electromagnetic interference EMI) or even physical damage in operational equipment. Learn more...
