Germanjet 17 Series with Crystal Hydraulic Cylinder

Hydraulic cylinder is common for use in machinery, mobile vehicle, and heavy industry. Those hydraulic cylinders have no position feedback and only can move from one set point to the other. Due to technological advancement, hydraulic cylinder with precise, direct and absolute position feedback is desired. To make a traditional cylinder with intelligence, Germanjet designed a non-contact absolute position transducer for cylindrical application - 17 series.

The installation of Germanjet 17 series sensor into any cylinder is extremely simple. The crystal hydraulic cylinder shows a full pictorial coverage of the procedures. It also demonstrates the perfect integration of the Germanjet sensor to any cylinder.

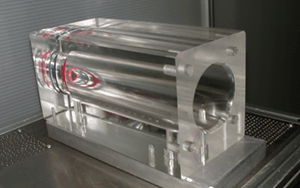

1) Body of the crystal cylinder with seal

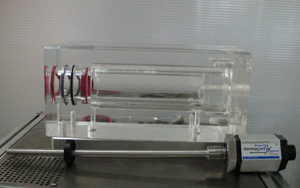

2) Germanjet 1700 series non-contact absolute position transducer for hydraulic cylinder

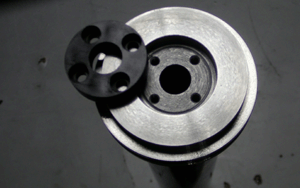

3) Installation of sensing magnet at the piston

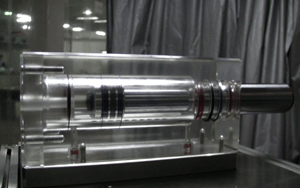

4) Integration of piston with cylinder body

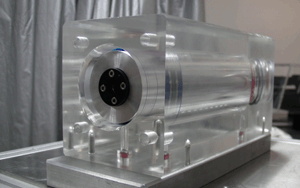

5) Completion of crystal hydraulic cylinder

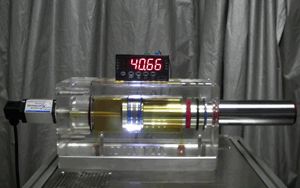

6) Crystal hydraulic cylinder with real time absolute postion feedback

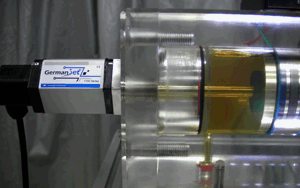

7) Germanjet 1700 sensor integrated prefectly with any fluid cylinder

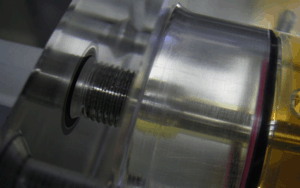

8) Professional sealing for ease of installation

Success Stories

position_sensor position_sensor position_sensor position_sensor position_sensor position_sensor

Magnetostrictive Technology

The fundamental principle of the Germanjet position transducer is by analyzing the feedback sonic wave induced by an interaction of two magnetic fields. The first magnetic field is produced by the moveable magnetic cursor which attached at the moving component of a machine. The second field is generated by the pulse initiator. Learn more...

Electromagnetic Compatibility

is the branch of electrical engineering concerned with the unintentional generation, propagation and reception of electromagnetic energy which may cause unwanted effects such as electromagnetic interference EMI) or even physical damage in operational equipment. Learn more...
