Magnetostrictive Sensor from Germanjet

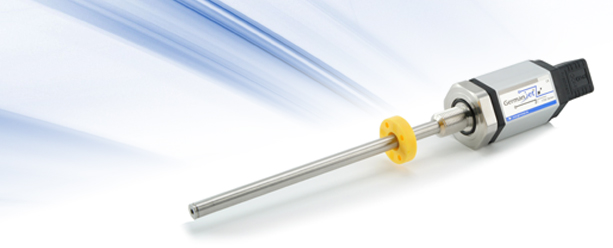

Magnetostrictive sensor is used for continuously, precisely and real-time position and velocity measurement of various moving parts under harsh environments. The absence of electrical contact on magnetostrictive sensor eliminates all wear and guarantees almost unlimited mechanical life expectancy. The non-contact cursor on magnetostrictive sensor provides exceptional ease of installation.
The principle of the magnetostrictive sensor is by analyzing the feedback sonic wave induced by an interaction of two magnetic fields. The first magnetic field is produced by the magnetostrictive sensor moveable magnetic cursor which attached at the moving component of a machine. The second field is generated by the pulse initiator. After the two magnetic fields interact, a sonic wave is induced and detected by the sonic wave analyzer.
By examining the characteristic of the wave pattern, the magnetostrictive sensor embedded microprocessor is able to generate the corresponding output signal to indicate the position of the machine. As a result, precise non-contact position is achieved with absolutely no wear to the sensing components.
Magnetostrictive sensor is the perfect position measuring device in plastic and rubber, equipment manufacturing, food and beverages, metal and woodworking, and automotive.

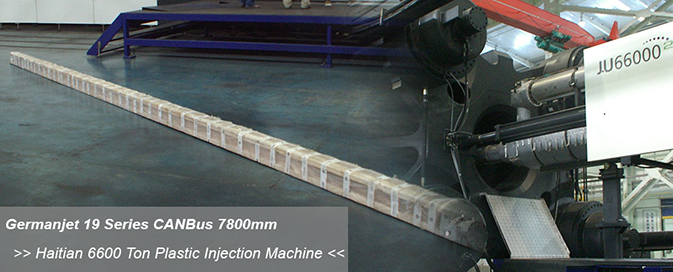

One of The World Largest Plastic Injection Machines 6600 Ton
The 19 series non-contact absolute position transducer is specially designed for use in many harsh process applications such as refining, petrochemicals, power generation, and even pharmaceuticals. Beside available for basic analog output, it coexists alongside with other communication interface such as CANBus, EtherCAT, Profibus, SSI, and Start / Stop.
Germanjet 17 Series Sensor with Crystal Hydraulic Cylinder
Hydraulic cylinder is common for use in machinery, mobile vehicle, and heavy industry. Those hydraulic cylinders have no position feedback and only can move from one set point to the other. Due to technological advancement, hydraulic cylinder with precise, direct and absolute position feedback is desired. To make a traditional cylinder with intelligence, Germanjet designed a non-contact absolute position transducer for cylindrical application - 17 series.
Germanjet 13 Series for Mobile Hydraulic
13 series is designed in strict accordance with the requirements of the mobile machinery industry. Its compact shape can be fully integrated with the hydraulic cylinder with limited head space. The high versatile IP68 profile housing offers full protection for use in harsh environments with high contamination and presence of dust. If the hydraulic cylinder is used with a special connector, the protection level is up to IP69K. Vibration and shock rating are also high-level 25g / 10-2000Hz and 100g (single shock).
